THE BALLISTA

BALLISTA FOR THROWING STONE BALLS.
Fig.15. -- BALLISTA FOR THROWING STONE BALLS. Approximate scale : .in.=1 foot.This engine is here shown with its bow-string only slightly drawn along its stock by the windlass
It will be seen that this engine is almost identical in construction with the one last described. (Fig.13.)

The difference is that it propelled a stone ball instead of a large arrow. The ball was driven along a square wooden trough, one-third of the diameter of the ball being enclosed by the sides of the trough so as to keep the missile in true direction after the bow-string was released.

The bow-string was in the form of a broad band, with an enlargement at its centre against which the ball rested.

The description given of the mechanism and management of the engine for throwing arrows can be applied to the construction and manipulation of this form of ballista, which was also made of large and small dimensions.

24


THE BALLISTA

Small engines with arms about 2 ft. in length and skeins of cord about 4 in. in diameter, such as those I have built for experiment, will send a stone ball, 1 lbs. in weight, from 300 to 350 yards.

There is little doubt that the large stone-throwing ballista of the Greeks and Romans was able to project a circular stone, of 6 to 8 lbs. weight, to a distance of from 450 to 500 yards.1

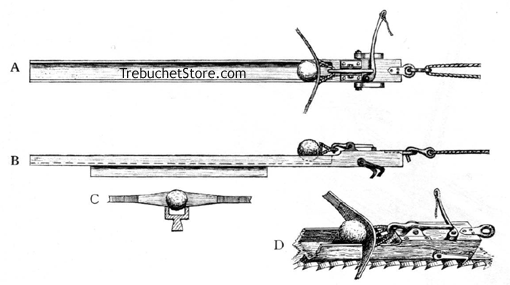

FIG. 16.-THE SLIDING TROUGH OF THE STONE-THROWING BALLISTA FIG. 16.-THE SLIDING TROUGH OF THE STONE-THROWING BALLISTA

A. Surface view, with the stone in position.

B. Side view, with stone in position.

C. Front view of the stone as it rests in the trough against the enlarged centre of the bow-string.

D. Enlarged view of the solid end of the sliding trough. This sketch shows the ball in position against the bow-string ; the catch bolding the loop of the bow- string, and the pivoted trigger which, when pulled, releases the catch. One of the pair of ratchets which engage the cogs on the sides of the stock, as the trough is drawn back by the windlass to make ready the engine, is also shown. The trough has a keel to it, and slides to or fro along the stock in the same manner as in the arrow-throwing ballista. (Fig.13.)

Compare with figs. 13, 14,, for further explanation of details.

1 The balls used by the ancients in their catapults and ballistas were often formed of heavy pebbles enclosed in baked clay, the reason being that balls made in this way shattered on falling and hence could not be shot back by the engines of the enemy. The ballistas for throwing arrows, and those employed for casting stones, were fitted with axles and wheels when constructed for use in field warfare.

25

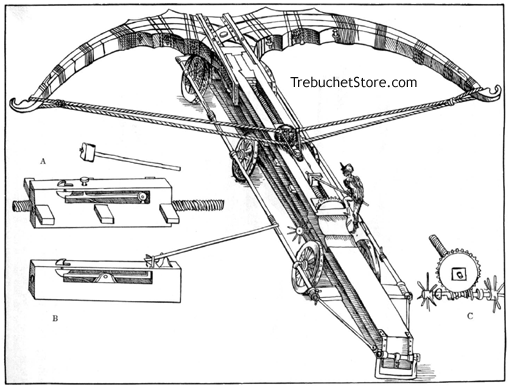

A SIEGE BALLISTA IN THE FORM OF AN IMMENSE STONEBOW FIG 17. – A SIEGE BALLISTA IN THE FORM OF AN IMMENSE STONEBOW

From 'Il Codice Atlantico,' Leonardo da Vinci, 1445 to 1520Criticism. A stonebow of vast size. A and B represent two kinds of lock. In A, the catch of the lock over which the loop of the bow-string was hitched, was released by striking down the knob to be seen below the mallet. In B, the catch was set free by means of a lever. C shows the manner of pulling back the bow-string.

By turning the spoked wheels, the screw-worm revolved the screwed bar on which the lock A traveled. The lock, as may be seen, worked to or fro in a slot along the stock of the engine. In the illustration the bow is fully bent and the man indicated is about to discharge the engine. After this was done, the lock was wound back along the screw-bar and the bow-string was hitched over the catch of the lock preparatory to bending the bow again.Besides being a famous painter, Leonardo was distinguished as an inventor and exact writer on mechanics and hydraulics.

'No artist before his time ever had such comprehensive talents, such profound skill or so discerning a judgment to explore the depths of every art or science to which he applied himself.' JOHN GOULD, Dictionary of painters, 1839.

From the above eulogy we may conclude that the drawings of ancient siege engines by Leonardo da Vinci are fairly correct.

26
