The Balista

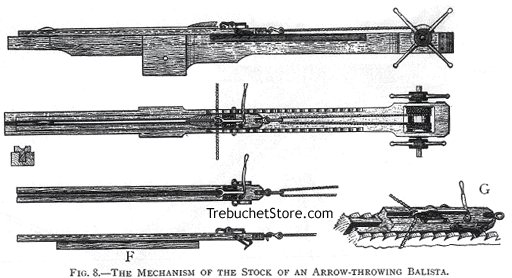

Fig. 8. - The Mechanism of the Stock of an Arrow Throwing
Ballista.
D. Surface view of the trough with the trigger and catch for the bowstring.
E. Side view, showing the Keel (F) which slides along the slot cut in
the surface of the stock as the trough is drawn back by the windlass.
G. Enlarged view of the solid end of the trough. This sketch shows the
catch for the bowstring, the trigger which sets it free, the ratchets which
engage the cogs on the side of the stock, and the slot cut in the stock
of the dovetailed keel of the trough to travel in.
Balistas were constructed of different sizes and for the various purposes
of siege and field warfare. The smallest of these engines was not larger
than a heavy crossbow, though it more than equaled the latter in power
and range.
The small ballista were chiefly used for shooting through loopholes
and from battlemented walls at an enemy assaulting with scaling ladders
and moveable towers.
The largest had arms of 3 ft. to 4 ft. in length, and skeins of twisted
sinew of 6 in. to 8 in. in diameter.
Judging from the models I have made and carefully experimented with,
it is certain that the more powerful ballista of the ancients could cast
arrows, or rather feathered javelins, of from 5 to 6 lb. in weight, to
a range of from 450 to 500 yards.
|
